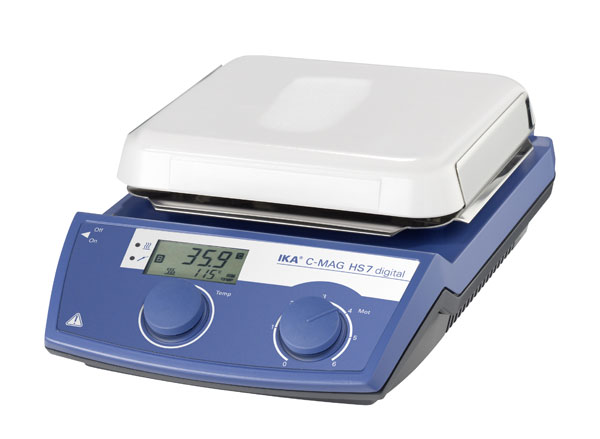

New magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 10 l (H2O)
- Simultaneous digital display of target and actual temperatures via LCD dispaly
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
- Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Digital error code display
- Elevated control panel for protection against leaking liquids
搅拌点位数目 |
1 |
每个搅拌点位最大搅拌量 (H2O) |
10 l |
最大搅拌量 (H2O) |
10 l |
电机输入功率 |
15 W |
电机输出功率 |
1.5 W |
转速显示 |
刻度 |
速度范围 |
100 - 1500 rpm |
搅拌子最大长度 |
80 mm |
加热输出功率 |
1000 W |
加热速度 1升H2O in H 15) |
5 K/min |
加热温度范围 |
50 - 500 °C |
加热温度控制 |
无级 |
加热温度控制精确度 |
1 ±K |
转速控制 |
刻度 1-10 |
固定安全温度回路 |
550 °C |
外接温度传感器接口 |
PT1000 |
带传感器控温精确度 |
0.5 ±K |
介质温度稳定性 |
0.5 ±K |
温度测量精确性 |
PT1000温度偏差±0.2(DIN IEC 751 Class A) K |
温度测量精度 |
0.1 K |
工作盘材质 |
陶瓷 |
工作盘外形尺寸 |
180 x 180 mm |
外形尺寸 |
215 x 105 x 330 mm |
重量 |
5 kg |
允许环境温度 |
5 - 40 °C |
允许相对湿度 |
80 % |
DIN EN 60529保护方式 |
IP 21 |
电压 |
230 / 120 / 100 V |
频率 |
50/60 Hz |
仪器输入功率 |
1020 W |
