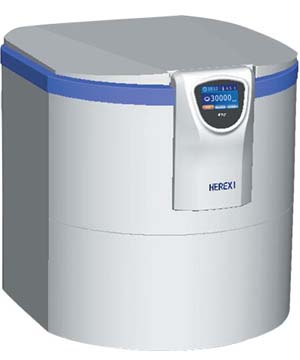

产品名称：HR30M落地式高速冷冻离心机

产品价格：询价

产品型号：HR30M

产品介绍：HR30M（GL30M）High Speed Refrigerated Centrifuge
·自动转子识别系统。
·免维护高力矩无刷变频电机直接驱动，启动力矩大、加速时间短。
·大屏幕液晶显示，触摸屏设计，同时显示设定参数和运行参数。
·主机和转子运行参数自动存储。
·十种加速与减速预设曲线，任一曲线都可自由编入程序。
·高效制冷系统，采用进口压缩机组（无氟环保制冷剂）。
·设有不平衡、门盖自锁、超速、超温多种保护功能，实现最佳运转性能。
·可直接设定RCF值离心，无需设定转速。
·不锈钢腔体。 ·Automatic rotor identification system.
·Maintenance-free brushless drive motor with frequency inversion,has high start torque and short acceleration time.
·LCD,touching panel,set data and operation data can be calculated automatically.
·The operation parameters of centrifuge and rotor can be stored auto matically.
·10 quadratic and 10linear preset decelcration and acceleration curves, and curve can freely be programmed.
·Efficient refrigerating machine for temperatures,the imported compressor operating without Freon for the purpose of environment protection.
·The protection function of imbalance,selflock lid,over speed and over temperature of optimal iperating convenience. ·RCF ＆#118alue can be set directly for centrifuging operation with out Speed setting.
·Stainless steel bowl.
技术参数Technical data
最大容量Max.Capacity：6×500ml
最高转速Max.speed rpm：30,000r/min
转速精度Speed accuracy：±50r/min
最大离心力Max.RCF：58,570×g
温控范围Temp.Range：－20℃—＋40℃
温控精度Temp.Accuracy： ±1℃
压缩机Compressor： 进口压缩机组imported compressor
定时范围Time Range：0~9h 59min
电源Power Supply：AC220 V/50Hz 30A
噪音Noise Level：<70 dB（A）
外形尺寸[长×宽×高]Dimensions：[L×W×H]700×650×1080mm
重量Weight：270kg
HR30M（GL30M）
角转子Fixed Angle Rotor
12 × 1.5/2.2 ml HR30M(GL30M) max. 30,000 min-1 58,570 × g
10 × 5 ml HR30M(GL30M) max. 24,000 min-1 37,670 × g
12 x 10 ml HR30M(GL30M) max. 20,000 min-1 37,250 × g
6 × 50 ml HR30M(GL30M) max. 20,000 min-1 37,580 × g
8 x 50 ml HR30M(GL30M) max. 18,000 min-1 37,165 × g
6 × 85 ml HR30M(GL30M) max. 16,000 min-1 26,100 × g
6 × 100 ml HR30M(GL30M) max. 15,000 min-1 27,150 × g
6 × 250 ml HR30M(GL30M) max. 10,000 min-1 15,200 × g
HR30M（GL30M）
水平转子Swing-out Rotor
4 × 100 ml max.5,000 min-1 4,390 × g
4 × 250 ml max. 6,000 min-1 6,920 × g
HR30M（GL30M）
水平酶标转子 Swing Enxymatic Rotor
2 × 2 × 96 孔 max. 4,000 min-1 2,200 × g
